Shanghai Qipang large 10-240mm² easy-maintainable automatic wire layer winding machine with Protected system
Company Profile:
"Quality first, customer first". Shanghai Qipang Industrial Co., Ltd. is a high-tech enterprise integrating R&D, design, manufacture and service of wire equipment, and has its own import and export rights. Founded in 2003, the company has passed ISO9001:2008 quality management system certification and SGS third-party authority certification. The company's main customers come to Central Europe, South America, South Africa, most of Asia. Companies adhere to the quality of survival, integrity to win the customer's operating principles, down-to-earth to actively listen to the valuable opinions of users.
use:
This series of products is suitable for: 10 -240mm2 large section cable for looping and tying, and can be used in conjunction with the tractor.
Technical Parameters:
1. Pay-off frame type: end shaft type electric lifting type, φ1000-φ1400 shaftless pay-off frame
2, the maximum speed of the host: 0-300 rev / min
3, high-precision meter: accuracy of 0.1% (one thousandth)
4, host power: 5HP (3KW), frequency conversion power: 3.7KW
5, the circle width: 50mm-250mm (adjustable)
6, the core diameter of the circle: φ180-250mm (adjustable)
7, the outer diameter of the ring is φ700mm (can also be customized according to customer requirements)
Technical Parameters:
| Type | Type A | Type B |
| Release form | Electric or passive | Electric or passive |
| Take-up tape measure | ≤630mm | ≤800mm |
| Cable way | Automatic cable | Automatic cable |
| Number of wire grooving | 3 slots | 3 slots |
| Wire tie height | 30-100mm | 30-100mm |
| Wire tie outer diameter | ≤310mm | ≤400mm |
| Wire inner diameter | Φ115mm-φ120mm-φ125mm | Φ130mm- φ135mm- φ140mm--φ145mm |
| Host revolutions | 0-500RPM/min | 0-360RPM/min |
| monitor rate | 2.2KW | 4KW |
| Production per shift | 700 ties / 8 hours, | 400 t / 8 hours |
| Loop line diameter | BV, BVV, RV: 0.3-6m2, RVV, RVVP: <8mm SYV75-3, SYV75-5 coaxial | BV, BVV, RV: 1-25m2, RVV, RVVP: <12mm, SYV75-5, SYV75-9 coaxial |
| Meter | Electronic high precision (adjustable length of meters) | Electronic high precision (adjustable length of meters) |
| Upper plate device | Lever type | Lever type |
Mounting Method:
The upper disc method is composed of a shaft lever type structure, which is completed by the following steps: "release the handle - remove the end shaft - tighten the taper - the upper long disc - the handle is locked". Designed for heavy-duty reels, it ensures high safety during high-speed operation.
Components of the equipment:
1. The storage line tension release frame adopts the manual lever mechanism to connect the upper and lower plates, saving time and effort. The tension of the take-up thread is constant, and the corner of the rocker arm shaft drives the brake lever to adjust the tension of the pay-off line at any time to ensure that the cable is not loose and unobstructed;
2. Electronic metering device: a sampling point is installed on the circumference of the meter wheel, and a signal is input to the counter, and the counter is accumulated by a length and directly displayed;
3. Looping host: The looping speed is controlled by the inverter. The length of the loop can be set by the CT intelligent counter. When the loop reaches the preset length, the machine will stop automatically.

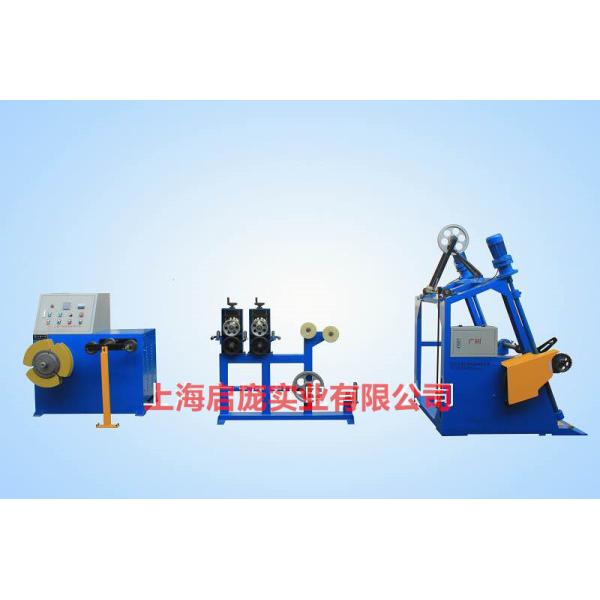

Products diaplay:
Product Tags:
|
|
Energy Saving Precision Layer Winding Machine Iron Aluminum Adjustable Speed Images
|
