14 Rollers Steel Wire Straightening Machine Groove Type With Bottom Base

Name: 14 Rollers Steel Wire Straightening Machine Groove Type With Bottom Base
Brand: QiPang
Price: 1 USD

China 14 Rollers Steel Wire Straightening Machine Groove Type With Bottom Base wholesale

Brand Name : QiPang

Model Number : Outerdiamete 54mm 14 rollers

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1

Price : RMB/USD

Payment Terms : T/T, Western Union, D/A, D/P, T/T, MoneyGram

Supply Ability : 10 units per month

Delivery Time : 15 working days

Packaging Details : wooden boxes

Usage : straightening

Warranty : 1 Year

Marketing Type : New Product 2021

After-sales Service : Video technical support, Online support

Contact Now

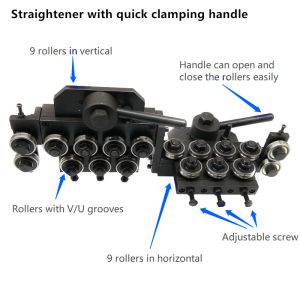

QIPANG 14 Rollers Wire Straightening Machine 14 Rollers Wire Straightener With Bottom

JZQ--- wire straightener
Straightening wire specification:Φ4.0mm----Φ15.0mm
14----- The number of straightening rollers
42------ The diameter of the straightening roller
V-------The groove type of straightening roller; V,R,U,and customization
A-------A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size:length 555mm×width 122mm×height 122mm
Total weight of straightener:The machine is 23 kg, including package about 25 kg
Applicable to4.0-6.0mmsolid wire,4.0-15.0mm hollow pipe

No	Product Model	Wire diameter(mm)	roller number	Roller diamter(mm)	Note
1	JZQ0.1-0.3/38 A.V	0.1-0.3	38	7
2	JZQ0.3-0.5/34.A.V	0.3-0.5	34	12
3	JZQ0.5-0.8/26.A.V	0.5-0.8	26	16
4	JZQ0.8-2.0/18.A.V	0.8-2.0	18	23	customize 5,10,14,18,22,26 rollers
5	JZQ 0.8-4.0/18.A.V	0.8-4.0	18	30	customize 5,10,14,18,22 rollers
6	JZQ4.0-7.0/14.A.V	4.0-7.0	14	42	customize 10,18,22,26 rollers
7	JZQ4.0-10.0/5.A.V	4.0-10.0	5	42	customize 7.10,14,18,22,26 rollers
8	JZQ 4.0-20.0/14.A.V	4.0-20.0	14	42/50/70	7.14.10.18.22 rollers
· · Professional customization:According to customer requirements for professional customization · Selects specific type:According to material hardness and material thickness
