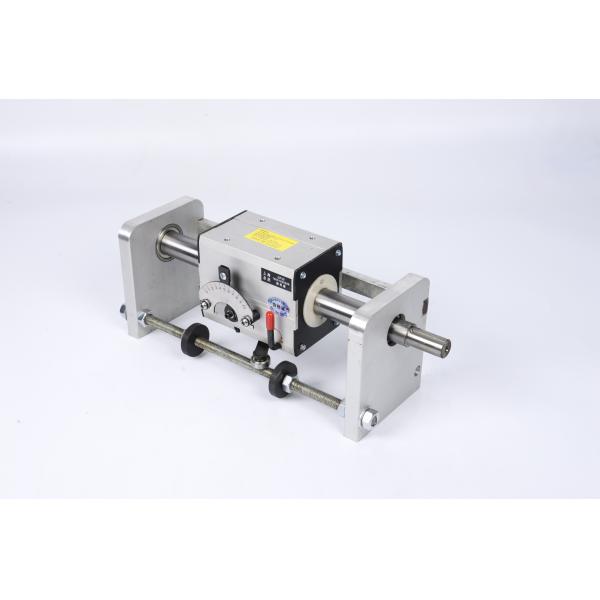

Polished Shaft Rolling Ring Drive Automatic Winding Machine Traverse Drive Linear Unit GP30 Traverse Unit

Name: Polished Shaft Rolling Ring Drive Automatic Winding Machine Traverse Drive Linear Unit GP30 Traverse Unit
Brand: QiPang
Price: 1 USD

China Polished Shaft Rolling Ring Drive Automatic Winding Machine Traverse Drive Linear Unit GP30 Traverse Unit wholesale

Brand Name : QiPang

Model Number : Rolling Ring Drive

Certification : CE

Place of Origin : Shanghai, China

MOQ : 5

Price : RMB/USD

Payment Terms : T/T, Western Union, D/A, D/P, T/T, MoneyGram

Supply Ability : 10 units per month

Delivery Time : 20 working days

Packaging Details : wooden boxes

Product name : ROLLING RING DRIVE

After Warranty Service : Video technical support, Online support

Warranty : 1 Year

Model : GP30

Automatic Grade : Automatic

Application : Winding

Contact Now

Polished Shaft Rolling Ring Drive Automatic Winding Machine Traverse Drive Linear Unit GP30 Traverse Unit

The GP series polished rod cable proves its operation from the front. The high quality materials and assembly quality used in the manufacturing process can compete freely with similar equipment made in Europe.

The Rolling Ring Drive unit on the smooth shaft is designed to evenly lay cables and other winding products on coils and coils on Spools of any width.

The device maintains a constant step when winding the product from the first layer to the last layer. This winding allows you to increase the packing density and improve the display of the finished product.

The device of this type is simple and reliable in operation, does not require special maintenance and has a simple mechanism for adjusting the stages of lamination.

Model	Shaft diameter(mm)	Max pitch(mm)	Max thrust(N)	Max weight(kg)
GP3-15	15	11	110	11
GP3-20/22	20	16	160	16
GP3-30/25	30	25	260	26
GP3-40	40	32	420	42
GP3-50	50	40	700	70
GP3-60	60	48	1000	100
