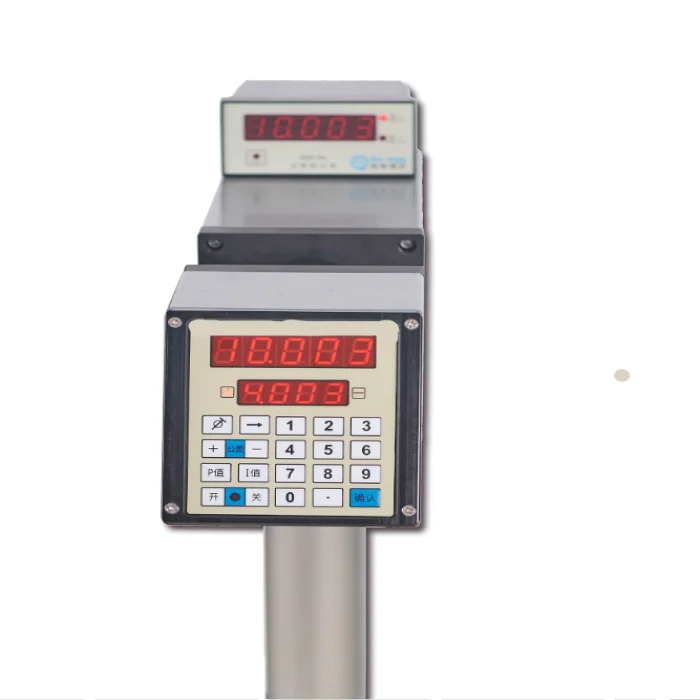

CE Non Contact Laser Diameter Measurement With RS232 Interface

1
2

China CE Non Contact Laser Diameter Measurement With RS232 Interface wholesale

China CE Non Contact Laser Diameter Measurement With RS232 Interface wholesale

Brand Name : QP3025XY

Model Number : 3025XY

Certification : CE

Place of Origin : China

MOQ : 1

Price : RMB/USD

Payment Terms : T/T, Western Union, D/A, D/P, T/T, MoneyGram

Supply Ability : 2 units per month

Delivery Time : 15working days

Packaging Details : wooden boxes

Certificate : CE

Color : White

Application : Distance Range

Name : Distance Meter Laser

Customization : Customized logo

Contact Now

Product Overview

Diameter Measurement QP-3025 Laser Measurment Wire And Cable Testing

Product application
● Transparent, translucent objects such as glass tubes and glass rods
● Local area network (LAN) cable
● Coaxial cable
● Optical fiber, flat cable
● Frequency cable, communication cable
● Power cable, pipe, wire
Product description
● Non-contact optical measurement
● Multi-angle display of operation panel
● Laser or LED long life light source
● Adopt advanced DSP processing technology
● Excellent dust resistance and anti-pollution design
● Protection class IP65, NEMA4
● RS232/485 communication interface
● Fully automatic closed-loop control technology, automatic feedback control wire diameter
● Measurement is not affected by speed and vibration, and the line diameter is automatically delayed.
● Scanning speed 600 times / sec (up to 1400 times / sec)

Technical Data Sheet

	QP-3025	QP-3040	QP-70/90/100/140
measuring range	0.1-25mm	0.5-40mm	1-70/120/140mm
measurement accuracy	±0.002mm	±0.003mm	±0.004mm
resolving power	0.001mm	0.001mm	0.001mm
lengthwidthheight	29066170mm	40068175mm	50486230mm

CE Non Contact Laser Diameter Measurement With RS232 Interface

CE Non Contact Laser Diameter Measurement With RS232 Interface

Certifications

CE Non Contact Laser Diameter Measurement With RS232 Interface
